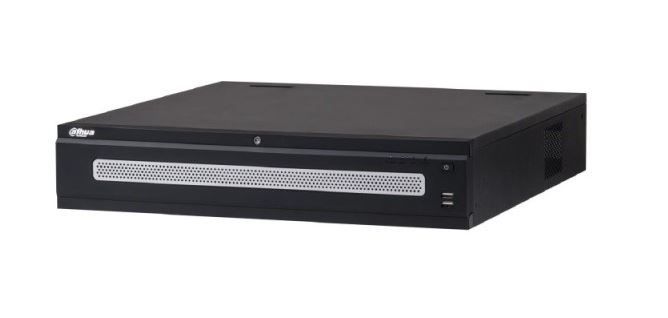

    NVR608-64-4KS2 NVR

    NVR608-64-4KS2 NVR

    Vaše cena bez DPH
    50 706 Kč
    Vaše cena s DPH
    61 355 Kčs DPH

    Do košíku
    Dostupnost produktu
    Skladem

    ano
    Kód produktu

    72197

    Výrobce
    Dahua
    Záruka
    24 Měsíce
    Hodnocení produktu
    Hodnoceno 0x
    Porovnat Hlídací pes

      Podrobnosti o produktu

      NVR608-64-4K   64 kanálové záznamové zařízeníNVR

      Videorekordér IP síťový 64-kanálový, OS Linux,processor Intel, podporované formáty H.264, MJPEG, záznammax. do 384Mbps, maximální rozlišení 12MPx na kameru,alarm I/O 16/8, 8 x SATA III 3.5" HDD max. 48TB (bez HDD), Raid0/1/5/6/10/50/60 (hot-spare HDD), 2x HDMI + 1x VGA výstup, podporaONVIF, podpora IP PTZ Dahua, 2x RJ45 port (10/100/1000 Mbps), 1xRS485, 1x RS232, 4x USB (1 USB3.0), rozměry 1U, 486 × 455 × 91mm,hmotnost 9kg (bez HDD)

      • Max 64 channel IP cameras connection
      • Max 384Mbps incoming bandwidth
      • Up to 12Mp resolution preview& playback
      • 1 VGA+2 HDMI
      • Support 8 hot-swap HDDs
      • Support RAID 0/1/5/6/10/50/60
      • Support N+M hot standby
      • Support iSCSI to expand storage space
      • Compatible with Dahua SDK and seamless integrated to otherplatforms
      • Support Multi-brand network cameras: Dahua, Arecont Vision,AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell,Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek andetc.
      • ONVIF Version 2.4 conformance
      • Redundant power supply module adopted (DH-NVR608R-64-4K)
      ModelDH-NVR608-64-4K
      System
      Main ProcessorIntelProcessors
      OperatingSystemLINUX
      Video&Audio
      IP Camera Input64channel
      Two-way Talk1channelInput, 1channel Output, RCA
      Display
      Interface2 HDMI(up to 3840×2160), 1 VGA
      Resolution3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
      Multi-screen DisplayThe 1stscreen: 1/4/8/9/16/25/36
      The 2ndscreen: 1/4/8/9/16
      OSDCameratitle, Time, Video loss, Camera lock, Motion detection,Recording
      Recording
      CompressionH.264/MJPEG
      Resolution12Mp,8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
      Record Rate256Mbps
      Bit Rate1~20Mbps
      Record ModeManual,Schedule(Regular(Continuous), MD(Video detection: Motion detection,Camera blank, Video loss), Alarm), Stop
      Record Interval1~120min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec
      Video Detection& Alarm
      Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,Buzzer & Screen tips
      Video DetectionMotionDetection, MD Zones: 396(22×18), Video Loss & Camera Blank
      Alarm Input16ch,low level effective, green terminal interface
      Relay Output8ch,Relay contact(1A@24VDC), NO/NC programmable, green terminalinterface
      Playback &Backup
      Playback128Mbpsin Raid 5 mode
      64Mbps in single HDD mode
      Search ModeTime/Date, Alarm, MD & Exact search (accurate to second)
      PlaybackFunctionPlay,Pause, Stop, Rewind, Fast play, Slow play, Next file, Previousfile, Next camera, Previous camera, Full screen, Repeat, Shuffle,Backup selection, Digital zoom
      Backup ModeUSBDevice/Network/Internal SATA burner/eSATA Device
      Network
      Interface2 RJ-45ports (10/100/1000Mbps)
      Ethernet Port2Ethernet ports joint working or 2 independent 1000Mbps Ethernetports
      Network FunctionHTTP,TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IPFilter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IPcamera, DVR, NVS and etc.)
      Max. UserAccess128users
      Smart PhoneiPhone,iPad, Android
      Storage
      Internal HDD8 SATAIII ports, up to 48TB
      HDD ModeSingle,Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
      AuxiliaryInterface
      USB4 USBports(3 USB2.0, 1 USB3.0)
      eSATA1 eSATAport
      RS2321 port,For PC communication& keyboard
      RS4851 port,For PTZ control
      General
      Power SupplyAC110V~240V, 50~60Hz
      PowerConsumption<40W (WithoutHDD)
      WorkingEnvironment-10°C~+55°C/10%~90%RH/86~106kpa
      Dimension(W×D×H)486mm(with ears)×454.9mm ×91mm
      Weight9kg(without HDD)
      Installation19”Rack-mounted
