Name: NVR4232
Brand: Dahua
SKU: 4486
Price: 8744.02 CZK
Availability: InStock

Vaše cena bez DPH

7 226 Kč

Vaše cena s DPH

8 744 Kčs DPH

Dostupnost produktu

Skladem

ano

Kód produktu

62557

Výrobce

Dahua

Záruka

24 Měsíce

Hodnocení produktu

Hodnoceno 0x

Porovnat Facebook Hlídací pes

Podrobnosti o produktu

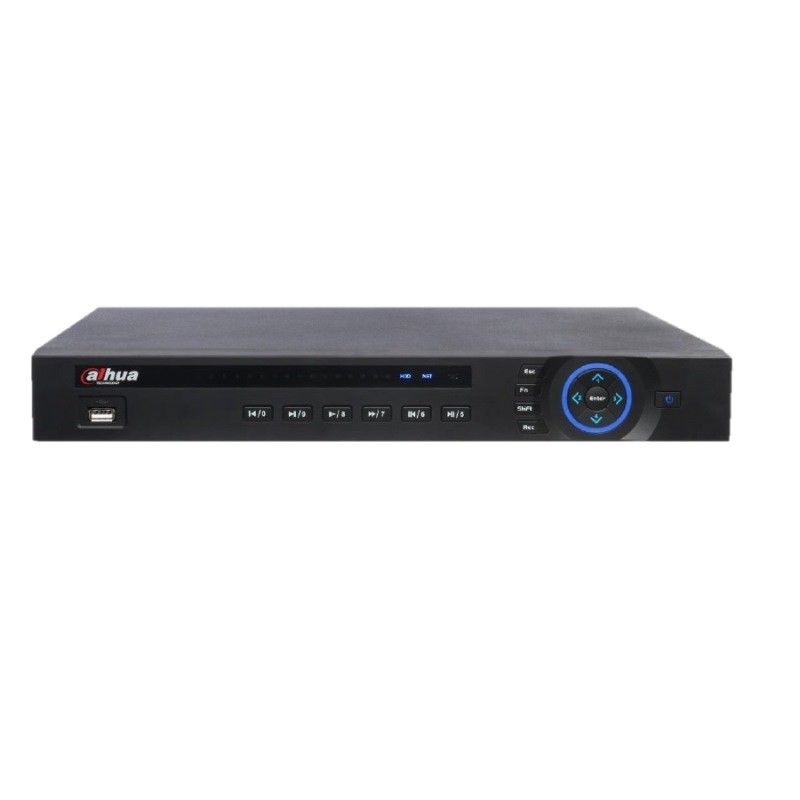

NVR4232 32 kanálové záznamové zařízení NVR

Videorekordér IP síťový 32-kanálový, OS Linux,Dual-core processor, přední ovládací panel, podporované formátyH.264, MJPEG, záznam max. do 200Mbps, maximální rozlišení5MPx na kameru, alarm I / O 4/2, 2 x SATA 3.5" HDDMax. 12TB (bez HDD), 1 HDMI + 1 VGA výstup,podpora ONVIF, podpora IP PTZ Dahua, 1x RJ45 port (10/100/1000Mbps), 2x USB (1 USB 3.0), 1x RS485, 1x RS232, součástí dálkovéovládání, rozměry 1U, 375 × 285 × 50mm, hmotnost 2kg (bez HDD)

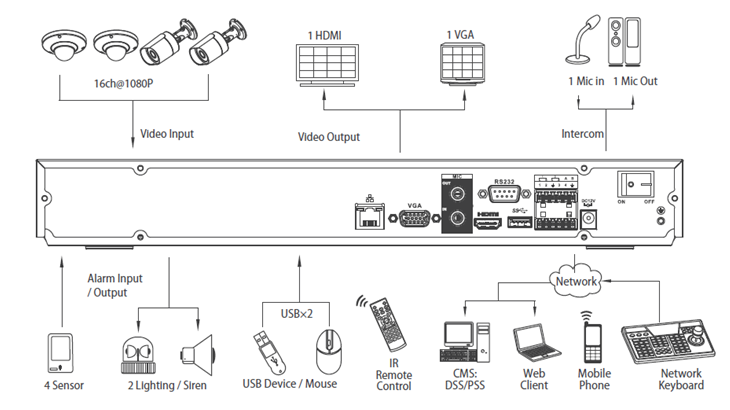

Up to 8/16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRIDinterface
Support Multi-brand network cameras: Dahua, Arecont Vision,AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, HDTEC, Honeywell,Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek andetc.
ONVIF Version 2.3 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS

Model	DH-NVR4204	DH-NVR4208	DH-NVR4216	DH-NVR4232
System
Main Processor	Dual-core embedded processor
OperatingSystem	EmbeddedLINUX
Video &Audio
IP Camera Input	4 channel	8 channel	16 channel	32channel
Two-way Talk	1channelInput, 1channel Output, RCA
Display
Interface	1 HDMI,1VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4	1/4/8/9	1/4/8/9/16	1/4/8/9/16
OSD	Cameratitle, Time, Video loss, Camera lock, Motion detection,Recording
Recording
Compression	H.264/MJPEG
Resolution	5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1 (704×576/704×480)&etc.
Record Rate	200Mbps
Bit Rate	48~8192kbps
Record Mode	Manual,Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec
Video Detection& Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer &Screen tips
Video Detection	MotionDetection,MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	4channel
Relay Output	2channel
Playback &Backup
Sync Playback	1/4	1/4/9	1/4/9/16		1/4/9/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smartsearch
PlaybackFunction	Play,Pause, Stop, Rewind, Fast play, Slow play, Next file, Previousfile, Next camera, Previous camera, Full screen, Repeat, Shuffle,Backup selection, Digital zoom
Backup Mode	USBDevice/Network/Internal SATA burner
Network
Ethernet	1 RJ-45port (10/100/1000Mbps)
NetworkFunction	HTTP,TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IPFilter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IPcamera, DVR, NVS and etc.)
Max. UserAccess	128users
Smart Phone	iPhone,iPad, Android, Windows Phone
Storage
Internal HDD	2 SATAports, up to 8TB
AuxiliaryInterface
USB	2 ports(1 Rear USB3.0, 1 Front USB2.0)
RS232	1 port,For PC communication&Keyboard
RS485	1 port,For PTZ control
General
Power Supply	DC12V/4A
PowerConsumption	20W(without HDD)
WorkingEnvironment	-10°C ~+55°C /10%~90%RH / 86~106kpa
Dimension (W×D×H)	1U,375mm×285mm×55mm
Weight	2.0KG(without HDD)
